103-49-1

二苄胺(103-49-1)核磁图(1HNMR)

产品名称:二苄胺

CAS:103-49-1

分子式:C14H15N

分子量: 197.28

InChI:InChI=1S/C14H15N/c1-3-7-13(8-4-1)11-15-12-14-9-5-2-6-10-14/h1-10,15H,11-12H2

InChIKey: BWLUMTFWVZZZND-UHFFFAOYSA-N

Smiles:C1(CNCC2=CC=CC=C2)=CC=CC=C1

  • 图谱
    Mass

    MS-NW-0885
    dibenzylamine
    C14H15N             (Mass of molecular ion:    197)


       Source Temperature: 280 °C
       Sample Temperature: 150 °C
       Reservoir, 75 eV


          18.0       1.0
          27.0       1.1
          28.0       4.5
          39.0       6.1
          41.0       2.4
          50.0       1.6
          51.0       5.5
          52.0       1.3
          63.0       2.7
          64.0       1.0
          65.0      15.2
          77.0       4.3
          78.0       1.7
          79.0       4.1
          89.0       3.1
          90.0       2.1
          91.0     100.0
          92.0      24.8
          93.0       1.6
         104.0       2.2
         106.0      53.0
         107.0       4.4
         117.0       1.7
         118.0       4.6
         120.0       6.8
         194.0       3.0
         195.0       3.3
         196.0       8.9
         197.0       5.9


90 MHz in CDCl3

  • 图谱

    1H NMR 89.56 MHz
    C14 H15 N 0.04 ml : 0.5 ml CDCl3
    dibenzylamine
    ChemicalStructure
        Assign.     Shift(ppm)
    A 7.29 B 3.778 C 1.61

         Hz     ppm     Int.


        659.31   7.362    102
        656.00   7.325    226
        653.13   7.293   1000
        650.00   7.258    215
        647.88   7.235    103
        646.19   7.216     71
        643.06   7.181     39
        641.31   7.161     38
        338.44   3.779    786
        143.81   1.606    168


in CDCl3

  • 图谱

KBr disc

  • 图谱

liquid film

  • 图谱

nujol mull

  • 图谱

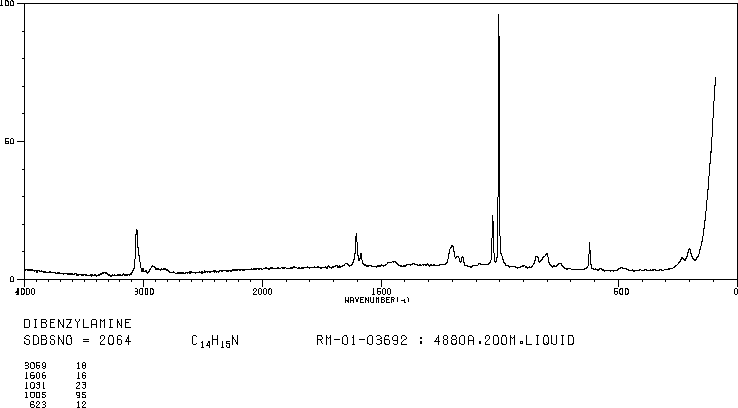

4880 A,200 M,liquid

  • 图谱

AIBN CATALYZED OXIDATION

  • 图谱

×
