返回ChemicalBook首页>CAS数据库列表>13368-42-8更多图谱> N-(三甲基硅基)吗啉(13368-42-8)红外图谱(IR1)

13368-42-8

N-(三甲基硅基)吗啉(13368-42-8)红外图谱(IR1)

分子式:C7H17NOSi

分子量: 159.3

InChI:InChI=1S/C7H17NOSi/c1-10(2,3)8-4-6-9-7-5-8/h4-7H2,1-3H3

InChIKey: JJOWIQMPCCUIGA-UHFFFAOYSA-N

Smiles:N1([Si](C)(C)C)CCOCC1

  • 图谱
    Mass

    MS-NW-9945
    4-(trimethylsilyl)morpholine
    C7H17NOSi           (Mass of molecular ion:    159)


       Source Temperature: 210 °C
       Sample Temperature: 160 °C
       Reservoir, 75 eV


          15.0       1.5
          27.0       3.4
          28.0      15.7
          29.0      19.4
          30.0       8.4
          31.0       4.1
          41.0       2.6
          42.0       7.4
          43.0      11.3
          44.0       4.8
          45.0      22.3
          46.0       1.5
          47.0       2.2
          52.0       1.2
          54.0       1.8
          55.0       6.6
          56.0      13.4
          57.0      28.9
          57.5       2.1
          58.0       6.3
          59.0      52.4
          60.0       4.1
          61.0       3.3
          66.0       2.9
          70.0       3.7
          71.0       2.1
          72.0       4.1
          73.0      81.0
          74.0       7.3
          75.0      22.8
          76.0       1.7
          77.0       2.4
          85.0       1.7
          86.0     100.0
          87.0      32.3
          88.0       5.3
          89.0       2.4
          93.0       1.2
         100.0      16.8
         101.0      83.4
         102.0      10.2
         103.0       9.8
         114.0      13.5
         115.0       2.3
         116.0       1.6
         128.0       1.6
         129.0      11.0
         130.0       2.0
         131.0       2.2
         144.0      74.5
         145.0       9.2
         146.0       3.5
         147.0      34.7
         148.0       5.5
         149.0       3.3
         158.0      20.2
         159.0      71.6
         160.0      11.2
         161.0       3.3
         229.0       1.5


400 MHz in CDCl3

  • 图谱

    1H NMR 399.65 MHz
    C7 H17 N O Si 0.05 ml : 0.5 ml CDCl3
    4-(trimethylsilyl)morpholine
    ChemicalStructure
        Assign.     Shift(ppm)
    A 3.550 B 2.827 C 0.044

         Hz     ppm     Int.


       1423.71   3.563    139
       1419.19   3.552    154
       1414.43   3.540    163
       1134.64   2.840    150
       1129.88   2.828    158
       1125.24   2.816    159
         22.22   0.056     47
         21.24   0.054     76
         17.82   0.045   1000
         14.77   0.037    144


in CDCl3

  • 图谱

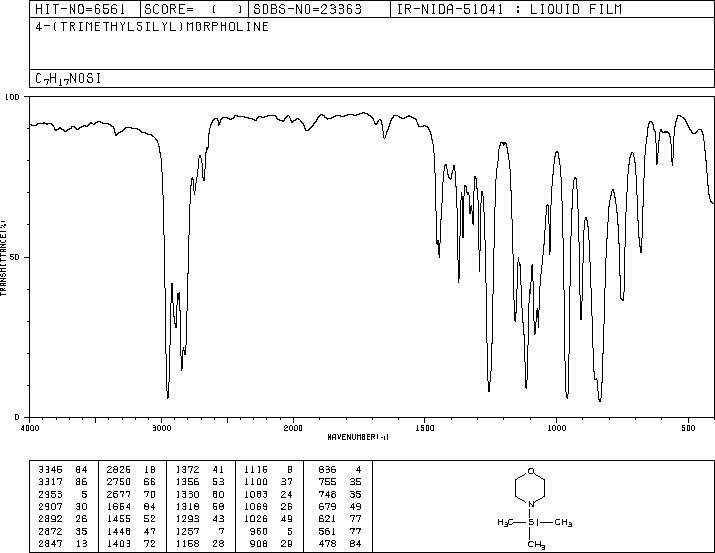

liquid film
