2-亚氨基哌啶盐酸盐(16011-96-4)红外图谱(IR1)

Mass

MS-IW-0063
2-piperidinimine hydrochloride
C5H10N2 HCl         (Mass of molecular ion:     98)

   Source Temperature: 210 °C
   Sample Temperature: 140 °C
   Direct, 75 eV

      15.0       1.5
      18.0       3.4
      26.0       1.0
      27.0       4.4
      28.0      10.1
      29.0       2.8
      30.0      26.3
      35.0       3.8
      36.0      49.3
      37.0       1.4
      38.0      16.3
      39.0       5.0
      40.0       1.7
      41.0      18.4
      42.0      34.5
      43.0      50.3
      44.0       8.4
      48.0       1.2
      52.0       1.1
      53.0       1.8
      54.0       7.8
      55.0       8.0
      56.0       7.6
      57.0       2.3
      68.0       1.5
      69.0       1.7
      70.0      68.8
      71.0       3.2
      80.0       1.2
      83.0       1.5
      84.0       2.5
      97.0      14.6
      98.0     100.0
      99.0      10.2

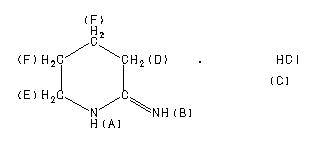

Assign. Shift(ppm) A *1 9.79 B *1 8.92 C *1 8.58 D 3.27 E 2.55 F 1.70

     Hz     ppm     Int.

   3914.18   9.795    220
   3565.98   8.923    219
   3429.11   8.581    231
   1308.75   3.275    532
   1306.92   3.271    517
   1024.17   2.563    307
   1018.07   2.548    688
    999.15   2.501     55
    997.16   2.496     41
    692.44   1.733     86
    689.54   1.726    136
    680.69   1.704    921
    677.49   1.696   1000
    674.29   1.688    957
    664.52   1.663    145
    661.93   1.657     96
    659.79   1.651     59
