返回ChemicalBook首页>CAS数据库列表>2501-02-2更多图谱> 4,4'-二硝基芪(2501-02-2)质谱(MS)

2501-02-2

4,4'-二硝基芪(2501-02-2)质谱(MS)

产品名称:4,4'-二硝基芪

CAS:2501-02-2

分子式:C14H10N2O4

分子量: 270.24

InChI:InChI=1S/C14H10N2O4/c17-15(18)13-7-3-11(4-8-13)1-2-12-5-9-14(10-6-12)16(19)20/h1-10H

InChIKey: CLVIIRIMEIEKOQ-UHFFFAOYSA-N

Smiles:C(C1=CC=C([N+]([O-])=O)C=C1)=CC1=CC=C([N+]([O-])=O)C=C1

  • 图谱

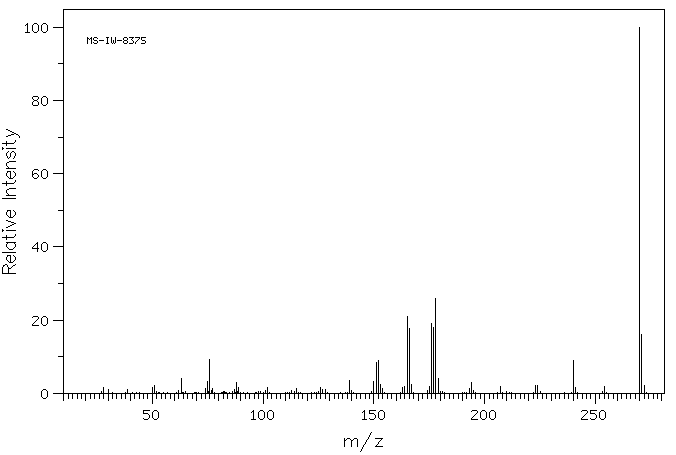

    Mass

    MS-IW-8375
    4,4'-dinitrostilbene
    C14H10N2O4          (Mass of molecular ion:    270)


       Source Temperature: 170 °C
       Sample Temperature: 180 °C
       Direct, 75 eV


          28.0       1.5
          30.0       1.0
          39.0       1.1
          50.0       1.5
          51.0       2.1
          63.0       4.1
          74.0       1.4
          75.0       3.2
          76.0       9.2
          77.0       1.3
          87.0       1.1
          88.0       3.1
          89.0       1.7
         102.0       1.5
         115.0       1.3
         126.0       1.6
         127.0       1.0
         128.0       1.1
         139.0       3.4
         150.0       3.2
         151.0       8.3
         152.0       9.1
         153.0       2.5
         154.0       1.3
         163.0       1.5
         164.0       1.8
         165.0      21.1
         166.0      17.6
         167.0       2.4
         175.0       1.9
         176.0      19.2
         177.0      18.0
         178.0      25.9
         179.0       4.0
         193.0       1.3
         194.0       2.9
         207.0       1.8
         223.0       2.1
         224.0       2.2
         240.0       9.1
         241.0       1.5
         254.0       1.9
         270.0     100.0
         271.0      16.1
         272.0       2.1


400 MHz in DMSO-d6 at +60.C

  • 图谱

    1H NMR 399.65 MHz
    C14 H10 N2 O4 saturated in DMSO-d6 at 60 C
    4,4'-dinitrostilbene
    ChemicalStructure
        Assign.     Shift(ppm)
    A 8.254 B 7.929 C 7.634

         Hz     ppm     Int.


       3305.79   8.272    115
       3303.47   8.266    854
       3301.39   8.261    271
       3299.93   8.258     63
       3296.51   8.249    302
       3294.43   8.244    969
       3291.99   8.238    104
       3290.89   8.235     31
       3177.00   7.950     52
       3174.93   7.945    146
       3172.61   7.939    885
       3170.53   7.934    281
       3165.53   7.921    271
       3163.57   7.916    771
       3161.01   7.910     94
       3160.03   7.907     31
       3055.54   7.646     31
       3051.03   7.635   1000
       3048.34   7.628     31


in DMSO-d6

  • 图谱

KBr disc

  • 图谱

nujol mull

  • 图谱

×
