返回ChemicalBook首页>CAS数据库列表>533-67-5更多图谱> 2-脱氧-D-核糖(533-67-5)红外图谱(IR2)

533-67-5

2-脱氧-D-核糖(533-67-5)红外图谱(IR2)

产品名称:2-脱氧-D-核糖

CAS:533-67-5

分子式:C5H10O4

分子量: 134.13

InChI:InChI=1S/C5H10O4/c6-2-1-4(8)5(9)3-7/h2,4-5,7-9H,1,3H2/t4-,5+/m0/s1

InChIKey: ASJSAQIRZKANQN-CRCLSJGQSA-N

Smiles:O=CC[C@@H]([C@@H](CO)O)O

  • 图谱

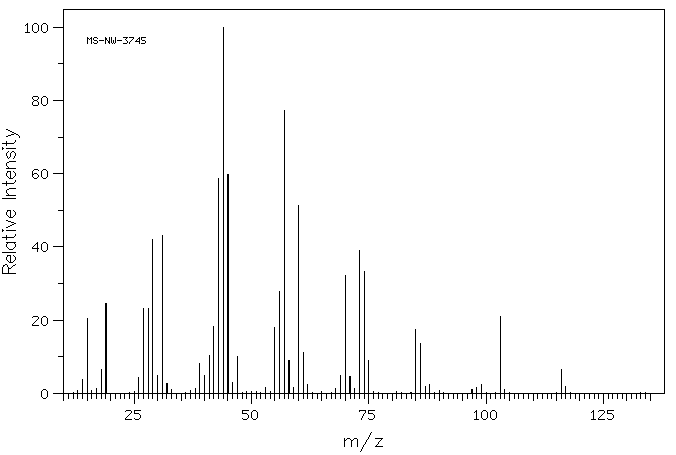

    Mass

    MS-NW-3745
    2-deoxy-D-ribose
    C5H10O4             (Mass of molecular ion:    134)


       Source Temperature: 170 °C
       Sample Temperature: 120 °C
       Direct, 75 eV


          14.0       3.8
          15.0      20.4
          17.0       1.3
          18.0       6.4
          19.0      24.5
          26.0       4.2
          27.0      23.2
          28.0      23.2
          29.0      42.0
          30.0       4.8
          31.0      43.2
          32.0       2.7
          33.0       1.1
          38.0       1.4
          39.0       8.2
          40.0       4.8
          41.0      10.4
          42.0      18.4
          43.0      58.7
          44.0     100.0
          45.0      59.7
          46.0       3.0
          47.0      10.1
          53.0       1.7
          55.0      18.0
          56.0      27.8
          57.0      77.2
          58.0       8.9
          59.0       1.7
          60.0      51.2
          61.0      11.1
          62.0       2.3
          68.0       1.4
          69.0       5.0
          70.0      32.1
          71.0       4.5
          72.0       1.2
          73.0      39.0
          74.0      33.3
          75.0       9.0
          85.0      17.5
          86.0      13.7
          87.0       2.0
          88.0       2.5
          97.0       1.0
          98.0       1.5
          99.0       2.4
         103.0      20.9
         104.0       1.0
         116.0       6.6
         117.0       1.8


400 MHz in D2O

  • 图谱

    1H NMR 399.65 MHz
    C5 H10 O4 0.036 g : 0.5 ml D2O
    2-deoxy-D-ribose
    ChemicalStructure
        Assign.     Shift(ppm)
    A 5.300 B 4.8 C 4.12 D 3.96 E 3.93 F 3.86 G 3.78 J 3.696 K 3.605 L 2.01 M 1.97 N 1.800 P 1.724 THE SOLVENT PEAK AT 4.8 PPM SUPPRESSED. ALPHA- AND BETA-FURANOSES MIXED. PARTIALLY ASSIGNED BY H-H COSY.

         Hz     ppm     Int.


       2251.83   5.635    128
       2247.31   5.624    176
       2242.55   5.612    127
       2229.49   5.579    169
       2227.42   5.574    184
       2223.88   5.565    176
       2221.80   5.560    169
       2121.83   5.310    521
       2118.41   5.301    977
       2114.87   5.292    509
       1752.20   4.385    107
       1751.71   4.384    103
       1748.29   4.375    105
       1747.80   4.374    107
       1708.86   4.276    152
       1705.20   4.267    164
       1701.54   4.258    153
       1662.84   4.161     96
       1658.81   4.151    179
       1654.54   4.140    392
       1650.39   4.130    434
       1647.22   4.122    322
       1644.90   4.116    313
       1641.48   4.108    385
       1637.21   4.097    291
       1594.48   3.990    469
       1592.53   3.985    551
       1582.28   3.960    627
       1579.71   3.953   1000
       1576.54   3.945    805
       1573.00   3.936    476
       1571.66   3.933    459
       1568.24   3.925    537
       1566.41   3.920    665
       1563.72   3.913    782
       1561.52   3.908    480
       1560.06   3.904    393
       1556.76   3.896    351
       1549.07   3.877    288
       1544.43   3.865    543
       1542.11   3.859    546
       1539.55   3.853    310
       1512.21   3.784    626
       1493.77   3.738    117
       1489.14   3.727    124
       1486.82   3.721    187
       1484.86   3.716    737
       1480.22   3.704    682
       1477.17   3.697    263
       1474.73   3.691    299
       1472.53   3.685    644
       1467.90   3.673    527
       1462.28   3.659    226
       1456.05   3.644    210
       1450.32   3.629    349
       1447.63   3.623    741
       1446.17   3.619    842
       1438.23   3.599    160
       1434.69   3.590    622
       1433.23   3.587    720
        961.91   2.407    107
        956.18   2.393     95
        954.59   2.389    103
        871.70   2.182    128
        866.33   2.168    257
        865.36   2.166    187
        861.21   2.155    243
        858.89   2.150    145
        854.74   2.139    124
        810.42   2.028    272
        807.13   2.020    462
        805.30   2.016    290
        802.61   2.009    263
        800.42   2.003    492
        797.00   1.995    660
        793.58   1.986    611
        790.41   1.978    335
        787.11   1.970    549
        783.69   1.961    381
        767.46   1.921     99
        765.14   1.915    115
        764.04   1.912    120
        761.84   1.907    107
        750.98   1.880    102
        749.88   1.877    103
        747.56   1.871     95
        729.25   1.825    277
        724.98   1.815    508
        720.95   1.804    301
        715.70   1.791    226
        711.55   1.781    372
        707.52   1.771    219
        704.71   1.764    310
        695.43   1.741    316
        692.75   1.734    435
        683.47   1.711    438
        680.79   1.704    267
        671.51   1.681    229


D2O

  • 图谱

KBr disc

  • 图谱

nujol mull

  • 图谱

  • 图谱

×
