96-41-3

环戊醇(96-41-3)红外图谱(IR1)

产品名称:环戊醇

CAS:96-41-3

分子式:C5H10O

分子量: 86.13

InChI:InChI=1S/C5H10O/c6-5-3-1-2-4-5/h5-6H,1-4H2

InChIKey: XCIXKGXIYUWCLL-UHFFFAOYSA-N

Smiles:C1(O)CCCC1

  • 图谱

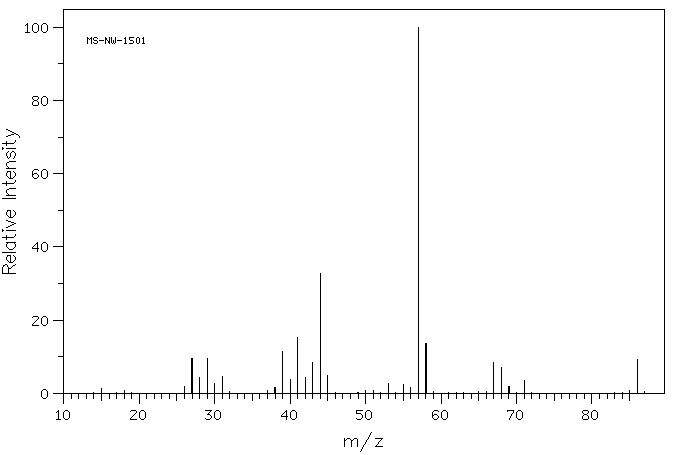

    Mass

    MS-NW-1501
    cyclopentanol
    C5H10O              (Mass of molecular ion:     86)


       Source Temperature: 240 °C
       Sample Temperature: 170 °C
       Reservoir, 75 eV


          15.0       1.3
          26.0       1.8
          27.0       9.5
          28.0       4.2
          29.0       9.4
          30.0       2.8
          31.0       4.7
          38.0       1.5
          39.0      11.5
          40.0       3.9
          41.0      15.3
          42.0       4.3
          43.0       8.4
          44.0      32.7
          45.0       4.8
          53.0       2.6
          55.0       2.5
          56.0       1.6
          57.0     100.0
          58.0      13.7
          67.0       8.3
          68.0       7.1
          69.0       1.8
          71.0       3.5
          86.0       9.2


90 MHz in CDCl3

  • 图谱

    1H NMR 89.56 MHz
    C5 H10 O 0.04 ml : 0.5 ml CDCl3
    cyclopentanol
    ChemicalStructure
        Assign.     Shift(ppm)
    A 4.31 B 2.03 C 2.00 to 1.31

         Hz     ppm     Int.


        391.13   4.368     52
        388.38   4.337     74
        386.38   4.315     74
        385.94   4.310     75
        384.31   4.292     67
        382.75   4.274     53
        380.69   4.251     34
        182.13   2.034   1000
        169.81   1.897     37
        167.94   1.876     42
        166.94   1.865     45
        164.38   1.836     74
        162.56   1.816     92
        159.31   1.779    127
        158.00   1.765    117
        155.88   1.741    193
        155.31   1.735    192
        151.38   1.691    333
        150.56   1.682    368
        149.63   1.671    369
        148.44   1.658    363
        147.44   1.647    379
        142.00   1.586    167
        139.38   1.557    102
        137.88   1.540    119
        136.69   1.527    113
        134.31   1.500     77
        133.50   1.491     69
        131.88   1.473     49
        130.44   1.457     35


in CDCl3

  • 图谱

CCl4 solution

  • 图谱

liquid film

  • 图谱

4880 A,200 M,liquid

  • 图谱

×
