ChemicalBook--->CAS DataBase List--->199174-24-8

199174-24-8

199174-24-8 Structure

199174-24-8 Structure
IdentificationBack Directory
[Name]

(S)-3-HYDROXYMETHYL-PYRROLIDINE-1-CARBOXYLIC ACID TERT-BUTYL ESTER
[CAS]

199174-24-8
[Synonyms]

N-Boc-L-beta-prolinol
N-Boc-L-^b-prolinol, 97+%
(S)-1-Boc-3-(hydroxyMethy...
(S)-1-Boc-3-pyrrolidinemethanol
(S)-N-BOC-PYRROLIDINE-3-METHANOL
(S)-1-Boc-3-hydroxymethylpyrrolidine
1-Boc-3(S)-(HydroxyMethyl)Pyrrolidine
(S)-3-HydroxyMethyl-pyrrolidine-1-carboxylic
(S)-1-tert-Butoxycarbonylpyrrolidine-3-methanol
(3S)-3-(Hydroxymethyl)pyrrolidine, N-BOC protected
tert-butyl(S)-3-(hydroxymethyl)pyrrolidine-1-carboxylate
tert-butyl (3S)-3-(hydroxyMethyl)pyrrolidine-1-carboxylate
3(S)-HYDROXYMETHYL-PYRROLIDINE-1-CARBOXYLIC ACID TERT-BUTYL ESTER
1,1-dimethylethyl (3S)-3-(hydroxymethyl)-1-pyrrolidinecarboxylate
(S)-3-HYDROXYMETHYL-PYRROLIDINE-1-CARBOXYLIC ACID TERT-BUTYL ESTER
(3S)-3-Hydroxymethylpyrrolidine-1-carboxylic acid tert-butyl ester
tert-Butyl (3S)-3-(hydroxymethyl)pyrrolidine-1-carboxylate, (3S)-1-(tert-Butox
1-Pyrrolidinecarboxylic acid, 3-(hydroxyMethyl)-, 1,1-diMethylethyl ester, (3S)-
(S)-3-PyrrolidineMethano(3-(S)-HydroxyMethylpyrrolidine, (S)-Pyrrolidin-3-ylMethanol)
tert-Butyl (3S)-3-(hydroxymethyl)pyrrolidine-1-carboxylate, (3S)-1-(tert-Butoxycarbonyl)-3-(hydroxymethyl)pyrrolidine
[Molecular Formula]

C10H19NO3
[MDL Number]

MFCD03094726
[MOL File]

199174-24-8.mol
[Molecular Weight]

201.26
Chemical PropertiesBack Directory
[Boiling point ]

285-289℃
[density ]

1.084
[storage temp. ]

Sealed in dry,2-8°C
[form ]

liquid
[pka]

14.93±0.10(Predicted)
[color ]

Brown
[Water Solubility ]

Slightly soluble in water.
[InChI]

InChI=1S/C10H19NO3/c1-10(2,3)14-9(13)11-5-4-8(6-11)7-12/h8,12H,4-7H2,1-3H3/t8-/m0/s1
[InChIKey]

HKIGXXRMJFUUKV-QMMMGPOBSA-N
[SMILES]

N1(C(OC(C)(C)C)=O)CC[C@H](CO)C1
[CAS DataBase Reference]

199174-24-8
Safety DataBack Directory
[Symbol(GHS) ]

Exclamation Mark (GHS07)
GHS07
[Signal word ]

Warning
[Hazard statements ]

H315-H319-H335
[Precautionary statements ]

P261-P280a-P304+P340-P305+P351+P338-P405-P501a
[HazardClass ]

IRRITANT
[HS Code ]

2933998090
Hazard InformationBack Directory
[Uses]

It is used as a pharmaceutical intermediate.
[Synthesis]

Di-tert-butyl dicarbonate

24424-99-5

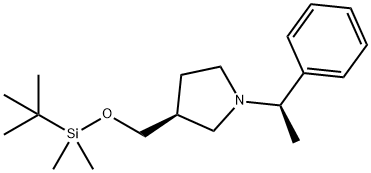

Pyrrolidine, 3-[[[(1,1-dimethylethyl)dimethylsilyl]oxy]methyl]-1-[(1R)-1-phenylethyl]-, (3S)-

1264942-79-1

(S)-3-HYDROXYMETHYL-PYRROLIDINE-1-CARBOXYLIC ACID TERT-BUTYL ESTER

199174-24-8

The general procedure for the synthesis of (S)-1-BOC-3-hydroxymethylpyrrolidine from di-tert-butyl dicarbonate and compound (CAS:1264942-79-1) was as follows: 1. 1-[(1S)-1'-phenylethyl]pyrrolidine (8.81 g, 27.6 mmol) was dissolved in 1,2-dichloroethane (75 ml) at room temperature and 1-chloroethyl chloroformate (8.1 ml, 75 mmol) was added to this solution. 2. The resulting mixture was refluxed for 5 hours and then cooled to room temperature. 3. diisopropylethylamine (2.3 ml, 13 mmol) was added to the cooled brown solution and the mixture was refluxed again for 3 hours. 4. After completion of the reaction, the mixture was concentrated and the residue was diluted with ethyl acetate and washed with 1N aqueous hydrochloric acid. 5. The organic layer was dried with anhydrous sodium sulfate and subsequently concentrated under reduced pressure. 6. The residue was dissolved in methanol, an aqueous 1N hydrochloric acid solution was added and the aqueous solution was washed with ethyl acetate. 7. The aqueous solution was alkalized with solid potassium carbonate and the alkaline solution was cooled to 0 °C. 8. tert-Butyl dicarbonate (6.3 g, 29 mmol) was added to tetrahydrofuran (75 ml) at 0 °C. 9. The resulting mixture was stirred for 3 hours and then the organic material was extracted with ethyl acetate. 10. The organic layer was dried with anhydrous sodium sulfate and the solvent was removed under reduced pressure. 11. The residue was purified by silica gel column chromatography (eluent: hexane/ethyl acetate = 3/1 to 1/2) to afford tert-butyl 3-hydroxymethylpyrrolidine-1-carboxylate (2.96 g, 14.7 mmol, 53%) as a colorless oil.

[References]

[1] Patent: WO2011/19090, 2011, A1. Location in patent: Page/Page column 45-46
Spectrum DetailBack Directory
[Spectrum Detail]

(S)-3-HYDROXYMETHYL-PYRROLIDINE-1-CARBOXYLIC ACID TERT-BUTYL ESTER(199174-24-8)1HNMR
