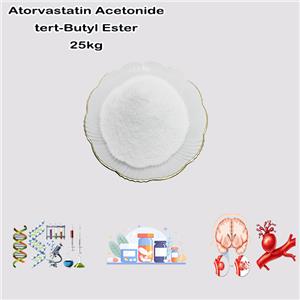

Atorvastatin Acetonide tert-Butyl Ester NEW

Atorvastatin Acetonide tert-Butyl Ester is not a pharmaceutical drug itself, but rather a key synthetic intermediate used in the industrial-scale manufacturing of Atorvastatin, the active ingredient in the cholesterol-lowering medication Lipitor. It is a protected form of the Atorvastatin molecule, designed to make the chemical synthesis more efficient and controllable.

Detailed Breakdown

To understand this compound, it's best to break down its name and structure:

1. The Core: Atorvastatin

• Atorvastatin is a complex molecule that works by inhibiting the HMG-CoA reductase enzyme, a critical step in the body's production of cholesterol.

  The active form of Atorvastatin is the open-chain dihydroxy heptanoic acid side chain. This part of the molecule is sensitive and reactive.

2. The Protecting Groups: "Acetonide" and "tert-Butyl Ester"

The core Atorvastatin molecule contains two highly reactive functional groups that can interfere with the chemical steps needed to build the rest of the molecule:

• A diol (two adjacent alcohol groups, -OH) on the side chain.

  A carboxylic acid (-COOH) at the end of the chain.

To prevent these groups from reacting during synthesis, chemists "protect" them by converting them into less reactive forms.

• Acetonide (Protecting the Diol):

• The acetonide group is formed by reacting the two adjacent alcohol (-OH) groups on the Atorvastatin side chain with acetone (or a similar reagent).

  This creates a rigid, five-membered cyclic ring (a ketal) that is stable to many chemical reaction conditions.

  Purpose: It locks away the sensitive diol, preventing it from undergoing unwanted oxidation or other side reactions while other parts of the molecule are being constructed.

• tert-Butyl Ester (Protecting the Carboxylic Acid):

• The tert-butyl ester is formed by protecting the carboxylic acid (-COOH) with a tert-butanol group.

  This converts the acid into a more stable, less reactive ester.

  Purpose: It prevents the acid from interfering with reactions, particularly base-catalyzed steps, and can also improve the solubility of the intermediate in organic solvents.

Role in Synthesis and Why It Matters

The use of "Atorvastatin Acetonide tert-Butyl Ester" is a cornerstone of an efficient industrial synthesis of Atorvastatin. The process typically follows these steps:

1. Construction & Protection: The Atorvastatin skeleton is built, and the sensitive diol and carboxylic acid are simultaneously protected as the acetonide and tert-butyl ester. This creates the stable intermediate in question.

2. Purification: This protected intermediate is a stable, crystalline solid, making it much easier to isolate and purify to a high degree of quality than the unprotected, sensitive form.

3. Final Deprotection: After all other synthetic steps are complete and the pure intermediate is obtained, the protecting groups are removed.

• The tert-butyl ester is easily removed with a mild acid.

  The acetonide group is also removed under acidic aqueous conditions, regenerating the vital dihydroxy acid side chain.

4. Final Product: This deprotection yields the pure, active pharmaceutical ingredient (API), Atorvastatin.

Summary of Key Properties

In conclusion, Atorvastatin Acetonide tert-Butyl Ester is a brilliant solution to a complex problem in chemical manufacturing. Its use allows for the practical, large-scale production of one of the most important and widely prescribed medications in history.
