ETHYL ISOTHIOCYANATOACETATE(24066-82-8) Raman

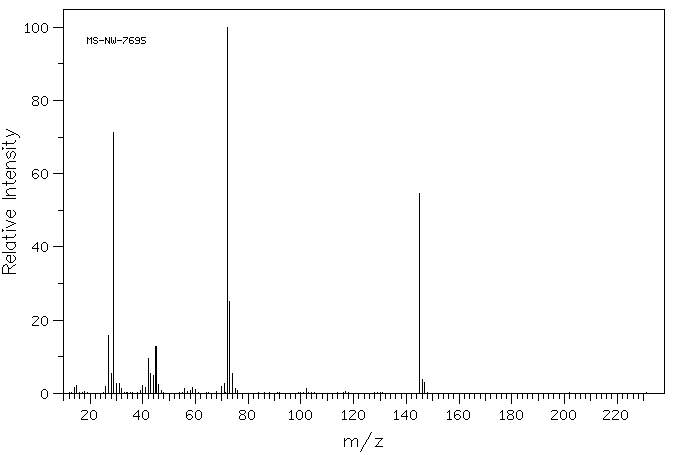

Mass

MS-NW-7695
ethyl isothiocyanatoacetate
C5H7NO2S            (Mass of molecular ion:    145)

   Source Temperature: 260 °C
   Sample Temperature: 170 °C
   Reservoir, 75 eV

      14.0       1.5
      15.0       2.1
      26.0       2.0
      27.0      15.7
      28.0       5.3
      29.0      71.4
      30.0       2.7
      31.0       2.6
      32.0       1.4
      40.0       2.2
      41.0       1.7
      42.0       9.5
      43.0       5.5
      44.0       5.0
      45.0      12.9
      46.0       2.3
      56.0       1.2
      59.0       1.7
      60.0       1.0
      70.0       1.9
      71.0       2.6
      72.0     100.0
      73.0      25.0
      74.0       5.4
      75.0       1.2
     102.0       1.4
     145.0      54.6
     146.0       3.9
     147.0       2.9
