trans,trans-2,4-Heptadienal(4313-03-5) Raman

Mass

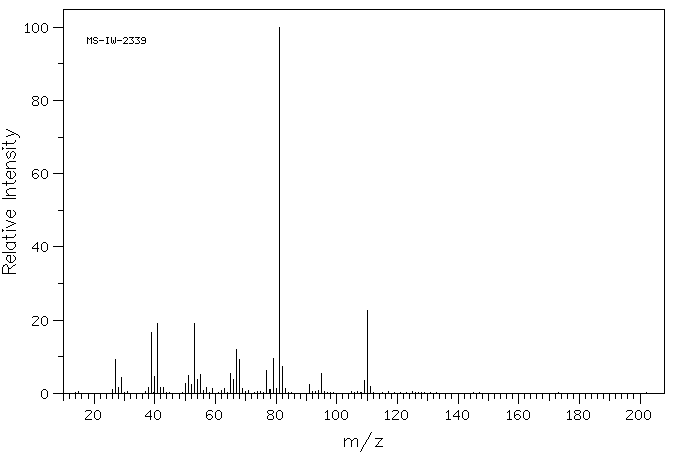

MS-IW-2339
trans,trans-2,4-heptadienal
C7H10O              (Mass of molecular ion:    110)

   Source Temperature: 200 °C
   Sample Temperature: 160 °C
   Reservoir, 75 eV

      26.0       1.0
      27.0       9.2
      28.0       1.6
      29.0       4.4
      38.0       1.7
      39.0      16.5
      40.0       4.5
      41.0      19.2
      42.0       1.7
      43.0       1.5
      50.0       2.7
      51.0       5.0
      52.0       2.4
      53.0      19.1
      54.0       3.7
      55.0       5.2
      57.0       1.7
      59.0       1.2
      63.0       1.4
      65.0       5.3
      66.0       3.8
      67.0      12.0
      68.0       9.3
      69.0       1.4
      77.0       6.2
      78.0       1.1
      79.0       9.6
      80.0       1.3
      81.0     100.0
      82.0       7.4
      83.0       1.2
      91.0       2.5
      95.0       5.5
     109.0       3.6
     110.0      22.7
     111.0       1.9
