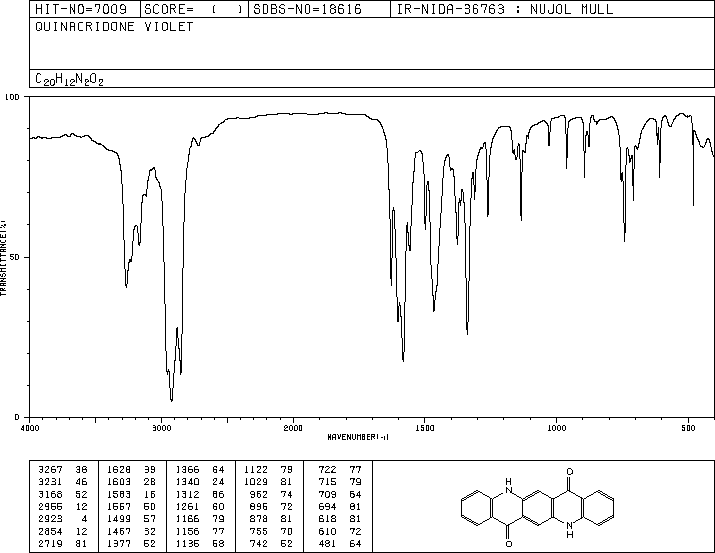

喹吖啶酮(1047-16-1)红外图谱(IR2)
分子式:C20H12N2O2
分子量: 312.32
InChI:InChI=1S/C20H12N2O2/c23-19-11-5-1-3-7-15(11)21-17-10-14-18(9-13(17)19)22-16-8-4-2-6-12(16)20(14)24/h1-10H,(H,21,23)(H,22,24)
InChIKey: NRCMAYZCPIVABH-UHFFFAOYSA-N
Smiles:C1=C2C(NC3=C(C2=O)C=CC=C3)=CC2C(=O)C3=C(NC1=2)C=CC=C3
-
Mass
MS-NW-9353
quinacridone violet
C20H12N2O2 (Mass of molecular ion: 312)
Source Temperature: 210 °C
Sample Temperature: 260 °C
Direct, 75 eV
18.0 1.5
77.0 1.2
100.0 1.5
101.0 1.7
113.5 1.5
114.0 4.4
114.5 1.6
127.0 1.9
127.5 2.5
128.0 5.8
128.5 2.5
141.5 1.9
142.0 2.0
156.0 8.2
156.5 1.8
227.0 1.8
228.0 1.5
253.0 1.7
254.0 1.4
255.0 10.4
256.0 4.8
283.0 4.0
284.0 4.1
295.0 2.8
296.0 1.0
311.0 8.0
312.0 100.0
313.0 22.5
314.0 2.9
