123-33-1

抑芽丹(123-33-1)质谱(MS)

产品名称:抑芽丹

CAS:123-33-1

分子式:C4H4N2O2

分子量: 112.09

InChI:InChI=1S/C4H4N2O2/c7-3-1-2-4(8)6-5-3/h1-2H,(H,5,7)(H,6,8)

InChIKey: BGRDGMRNKXEXQD-UHFFFAOYSA-N

Smiles:C1(=O)NNC(=O)C=C1

  • 图谱
    Mass

    MS-NW-0247
    maleic hydrazide
    C4H4N2O2            (Mass of molecular ion:    112)


       Source Temperature: 220 °C
       Sample Temperature:   0 °C
       Direct, 75 eV


          18.0       1.9
          25.0       3.3
          26.0      14.0
          27.0      11.9
          28.0       2.7
          29.0      11.3
          30.0       3.3
          37.0       1.5
          38.0       3.6
          39.0       1.2
          40.0       1.5
          41.0       5.4
          42.0       1.7
          43.0       1.8
          44.0       1.2
          51.0       2.0
          52.0       1.7
          53.0       6.8
          54.0      20.4
          55.0      32.0
          56.0       4.5
          58.0       2.8
          82.0      69.4
          83.0       3.9
          84.0       7.7
         112.0     100.0
         113.0       6.1


90 MHz in DMSO-d6

400 MHz in DMSO-d6

  • 图谱

    1H NMR 89.56 MHz
    C4 H4 N2 O2 0.046 g : 0.5 ml DMSO-d6
    maleic hydrazide
    ChemicalStructure
        Assign.     Shift(ppm)
    A 11.42 B 6.952

         Hz     ppm     Int.


       1022.69  11.420     44
        622.63   6.953   1000


  • 图谱

    1H NMR 399.65 MHz
    C4 H4 N2 O2 0.041 g : 0.5 ml DMSO-d6
    maleic hydrazide
    ChemicalStructure
        Assign.     Shift(ppm)
    A 11.5 B 6.973

         Hz     ppm     Int.


       4598.03  11.506     25
       2787.06   6.974   1000


in DMSO-d6

  • 图谱

KBr disc

  • 图谱

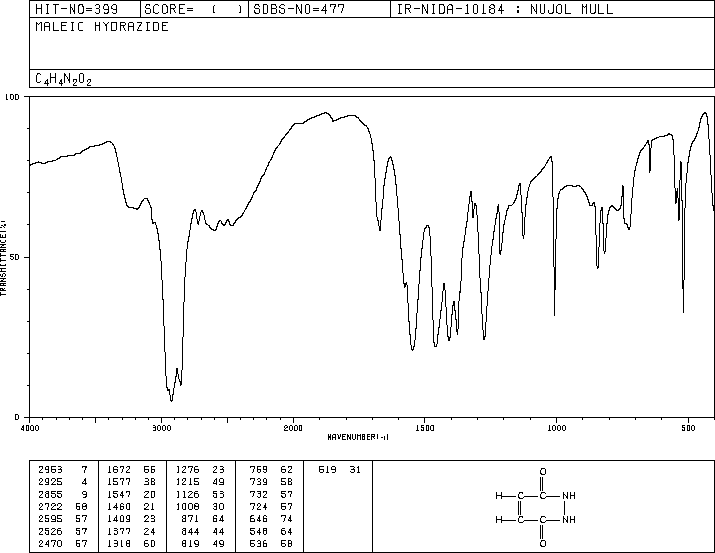

nujol mull

  • 图谱

4880 A,200 M,powder

  • 图谱

TI(III) COMPLEX, IN TOLUENE/BENZENE, 77K

  • 图谱

×
