14167-18-1

双水杨酰胺乙基钴(14167-18-1)红外图谱(IR2)

分子式:C16H14CoN2O2

分子量: 325.23

InChI:InChI=1S/C16H16N2O2.Co/c19-15-7-3-1-5-13(15)11-17-9-10-18-12-14-6-2-4-8-16(14)20;/h1-8,11-12,19-20H,9-10H2;/q;+2/p-2/b17-11+,18-12+;

InChIKey: NPAQSKHBTMUERN-OYJDLGDISA-L

Smiles:C12=CC=CC=C1C=NCCN=CC1=CC=CC=C1O[Co]O2 |t:7,11|

  • 图谱
    Mass

    MS-NW-9955
    (N,N'-disalicylideneethylenediaminato)cobalt(II)
    C16H14CoN2O2        (Mass of molecular ion:    325)


       Source Temperature: 190 °C
       Sample Temperature: 160 °C
       Direct, 75 eV


          59.0       4.1
         123.0       1.3
         136.0       1.2
         137.0       1.9
         149.0       1.6
         151.0       1.4
         162.5       2.6
         164.0       1.0
         165.0       6.3
         177.0       2.9
         178.0       3.4
         179.0       4.9
         180.0       5.8
         192.0       2.7
         193.0       1.0
         206.0       1.0
         297.0       8.4
         298.0       2.2
         323.0       2.2
         324.0       1.4
         325.0     100.0
         326.0      18.4
         327.0       2.0


KBr disc

  • 图谱

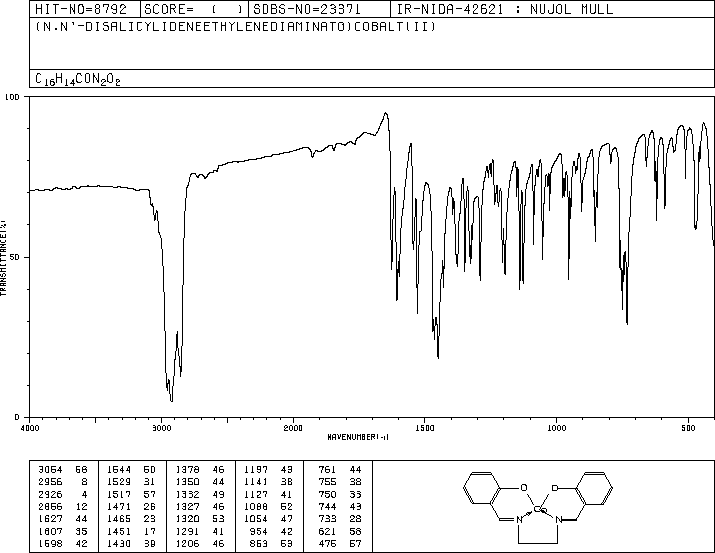

nujol mull

  • 图谱

×
