2154-68-9

3-羧基-2,2,5,5-四甲基吡咯烷 1-氧(2154-68-9)质谱(MS)

产品名称:3-羧基-2,2,5,5-四甲基吡咯烷 1-氧

CAS:2154-68-9

分子式:C9H16NO3*

分子量: 186.23

InChI:InChI=1S/C9H16NO3/c1-8(2)5-6(7(11)12)9(3,4)10(8)13/h6H,5H2,1-4H3,(H,11,12)

InChIKey: GEPIUTWNBHBHIO-UHFFFAOYSA-N

Smiles:N1([O])C(C)(C)CC(C(=O)O)C1(C)C |^1:1|

IR1

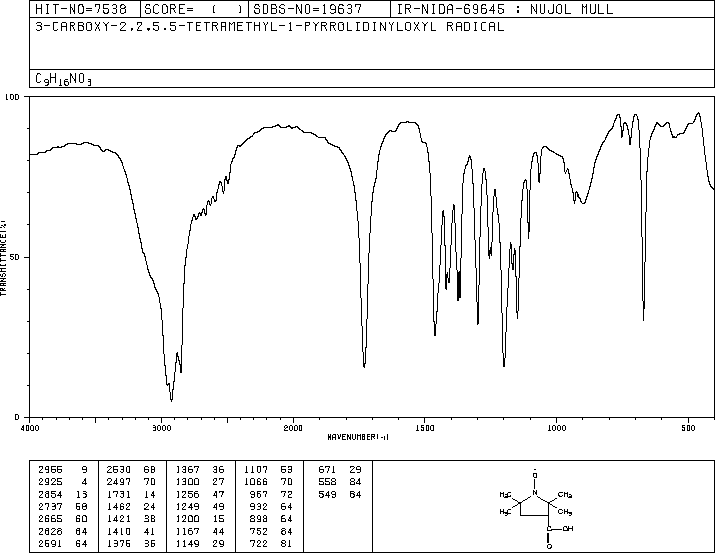

IR2

Raman

Mass

MS-IW-7691
3-carboxy-2,2,5,5-tetramethyl-1-pyrrolidinyloxyl radical
C9H16NO3            (Mass of molecular ion:    186)

   Source Temperature: 230 °C
   Sample Temperature: 150 °C
   Reservoir, 75 eV

      15.0       1.3
      18.0       2.3
      27.0       5.6
      28.0       2.8
      29.0       6.0
      30.0       1.3
      39.0       8.6
      40.0       2.2
      41.0      24.5
      42.0       8.1
      43.0       7.3
      44.0       4.1
      45.0       1.7
      51.0       1.3
      53.0       5.1
      54.0       2.1
      55.0      13.6
      56.0      54.3
      57.0       5.7
      58.0       1.8
      59.0      10.5
      65.0       1.2
      67.0       6.3
      68.0       2.6
      69.0      10.8
      70.0       3.1
      71.0       1.8
      73.0       1.4
      74.0      20.2
      77.0       1.5
      79.0       1.6
      81.0       2.3
      82.0       5.7
      83.0      16.0
      84.0       1.9
      85.0       4.1
      86.0       1.3
      88.0       1.2
      93.0       1.4
      94.0       2.3
      95.0       5.0
      96.0       2.4
      97.0       1.1
      98.0       2.1
      99.0       1.3
     100.0       6.2
     101.0     100.0
     102.0       5.9
     107.0       1.1
     108.0       4.7
     109.0       7.4
     110.0       3.7
     111.0       2.8
     112.0       1.3
     113.0       2.1
     114.0       3.0
     126.0      26.2
     127.0       2.6
     138.0       1.1
     140.0       1.2
     154.0       1.8
     156.0       8.8
     171.0      15.2
     172.0       4.4
     186.0      29.8
     187.0       4.5

KBr disc
