返回ChemicalBook首页>CAS数据库列表>2549-93-1更多图谱> 1,4-环己烷二甲胺(2549-93-1)红外图谱(IR2)

2549-93-1

1,4-环己烷二甲胺(2549-93-1)红外图谱(IR2)

分子式:C8H18N2

分子量: 142.24

InChI:InChI=1S/C8H18N2/c9-5-7-1-2-8(6-10)4-3-7/h7-8H,1-6,9-10H2

InChIKey: OXIKYYJDTWKERT-UHFFFAOYSA-N

Smiles:C1(CN)CCC(CN)CC1

  • 图谱

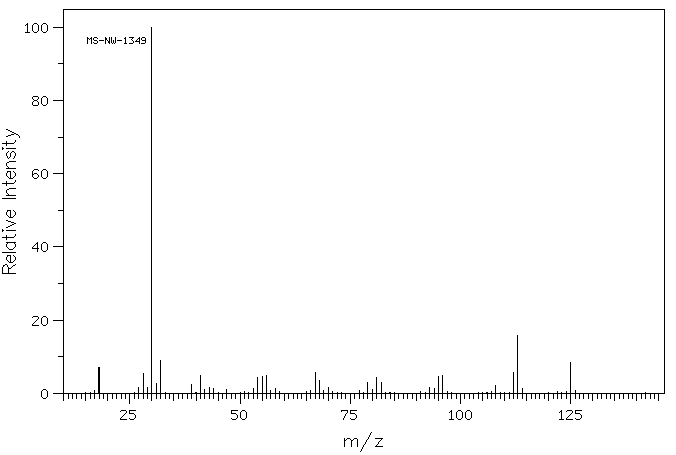

    Mass

    MS-NW-1349
    1,4-bis(aminomethyl)cyclohexane
    C8H18N2             (Mass of molecular ion:    142)


       Source Temperature: 260 °C
       Sample Temperature: 180 °C
       Reservoir, 75 eV


          18.0       7.0
          27.0       1.7
          28.0       5.3
          29.0       1.7
          30.0     100.0
          31.0       2.6
          32.0       8.9
          39.0       2.3
          41.0       4.8
          42.0       1.1
          43.0       1.6
          44.0       1.3
          47.0       1.1
          53.0       1.4
          54.0       4.3
          55.0       4.7
          56.0       4.9
          58.0       1.3
          67.0       5.8
          68.0       3.4
          70.0       1.6
          79.0       2.9
          80.0       1.1
          81.0       4.2
          82.0       2.9
          93.0       1.6
          94.0       1.2
          95.0       4.6
          96.0       5.0
         108.0       2.2
         112.0       5.8
         113.0      15.8
         114.0       1.3
         125.0       8.4


CCl4 solution

  • 图谱

liquid film

  • 图谱

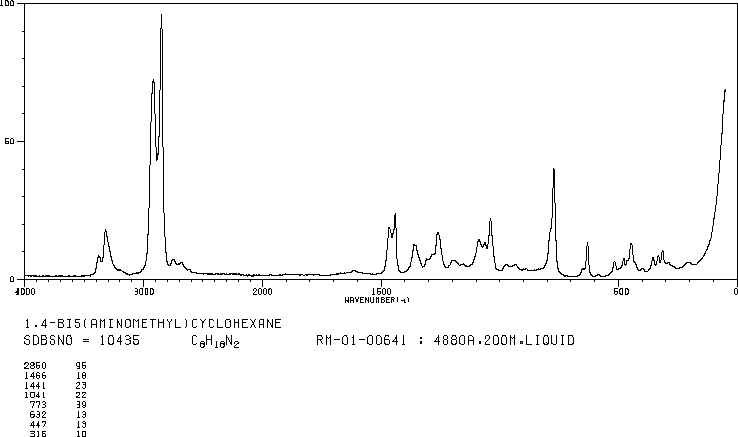

4880 A,200 M,liquid

  • 图谱

×
