返回ChemicalBook首页>CAS数据库列表>513-36-0更多图谱> 氯代异丁烷(513-36-0)红外图谱(IR2)

513-36-0

氯代异丁烷(513-36-0)红外图谱(IR2)

产品名称:氯代异丁烷

CAS:513-36-0

分子式:C4H9Cl

分子量: 92.57

InChI:InChI=1S/C4H9Cl/c1-4(2)3-5/h4H,3H2,1-2H3

InChIKey: QTBFPMKWQKYFLR-UHFFFAOYSA-N

Smiles:C(Cl)C(C)C

  • 图谱
    Mass

    MS-NW-0913
    1-chloro-2-methylpropane
    C4H9Cl              (Mass of molecular ion:     92)


       Source Temperature: 280 °C
       Sample Temperature: 150 °C
       Reservoir, 75 eV


          15.0       1.0
          26.0       1.2
          27.0      15.9
          28.0       1.9
          29.0       6.0
          37.0       1.1
          38.0       2.2
          39.0      12.8
          40.0       2.0
          41.0      50.2
          42.0      46.1
          43.0     100.0
          44.0       3.3
          49.0       3.3
          50.0       1.0
          51.0       1.0
          55.0       3.5
          56.0       5.3
          57.0       1.8
          77.0       2.9


parameter in CDCl3

  • 图谱

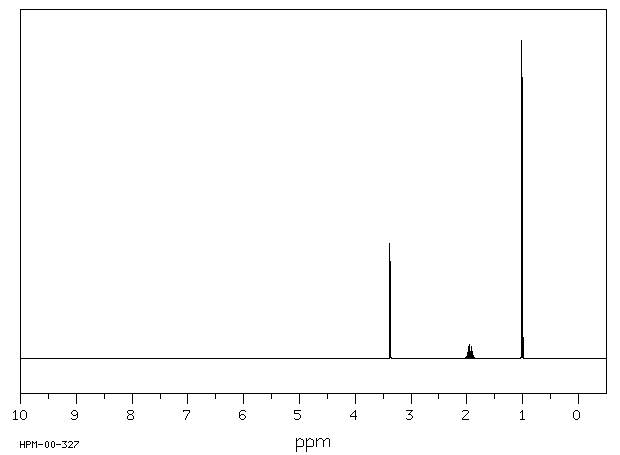

    1H NMR 300 MHz
    C4 H9 Cl 0.04 ml : 0.5 ml CDCl3
    1-chloro-2-methylpropane
    ChemicalStructure
        Parameter     ppm  Hz
    D(A) 3.380 D(B) 1.95 D(C) 1.013 J(A,B) 6.13 J(A,C) 0.0 J(B,C) 6.57

         Hz     ppm     Int.


       1017.09   3.390    335
       1010.97   3.370    345
        598.10   1.994     25
        591.60   1.972     50
        585.10   1.950     62
        578.71   1.929     51
        572.30   1.908     27
        307.16   1.024   1000
        300.59   1.002    951


in CDCl3

  • 图谱

CCl4 solution

  • 图谱

liquid film

  • 图谱

4880 A,200 M,liquid

  • 图谱

×
