3-甲基环己醇(591-23-1)红外图谱(IR2)

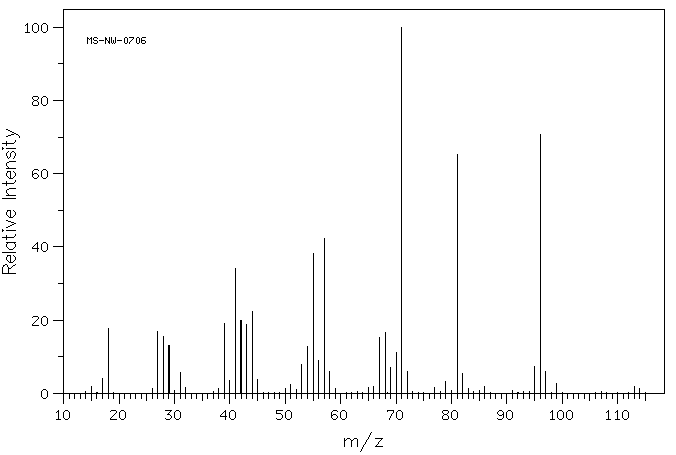

Mass

MS-NW-0706
3-methylcyclohexanol
C7H14O              (Mass of molecular ion:    114)

   Source Temperature: 220 °C
   Sample Temperature: 150 °C
   Reservoir, 75 eV

      15.0       1.9
      17.0       4.0
      18.0      17.8
      26.0       1.2
      27.0      16.9
      28.0      15.6
      29.0      13.2
      31.0       5.6
      32.0       1.7
      38.0       1.4
      39.0      19.2
      40.0       3.4
      41.0      34.2
      42.0      19.9
      43.0      18.9
      44.0      22.5
      45.0       3.9
      50.0       1.2
      51.0       2.5
      52.0       1.0
      53.0       7.8
      54.0      12.8
      55.0      38.3
      56.0       9.1
      57.0      42.4
      58.0       5.9
      59.0       1.3
      65.0       1.6
      66.0       1.9
      67.0      15.3
      68.0      16.7
      69.0       7.2
      70.0      11.2
      71.0     100.0
      72.0       6.1
      77.0       1.7
      79.0       3.2
      81.0      65.3
      82.0       5.5
      83.0       1.3
      86.0       1.8
      95.0       7.3
      96.0      70.7
      97.0       6.1
      99.0       2.8
     113.0       2.0
     114.0       1.4
