ACETONE DIMETHYLHYDRAZONE(13483-31-3) MS
Product NameACETONE DIMETHYLHYDRAZONE
CAS13483-31-3
Molecular FormulaC5H12N2
Molecular Weight100.16
InChIInChI=1S/C5H12N2/c1-5(2)6-7(3)4/h1-4H3
InChIKey IDSMDKUVIBSETN-UHFFFAOYSA-N
SmilesC/C(=N\N(C)C)/C
-

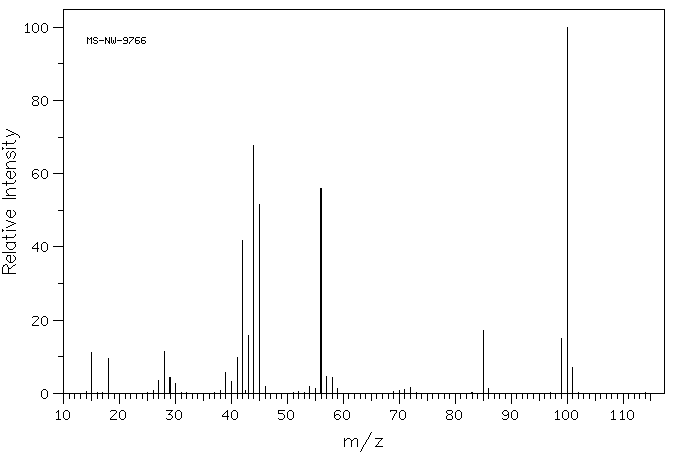

MassMS-NW-9766 acetone dimethylhydrazone C5H12N2 (Mass of molecular ion: 100)
Source Temperature: 220 °C Sample Temperature: 150 °C Reservoir, 75 eV
15.0 11.1 18.0 9.4 27.0 3.6 28.0 11.5 29.0 4.3 30.0 2.7 39.0 5.6 40.0 3.2 41.0 9.7 42.0 41.8 43.0 15.7 44.0 67.6 45.0 51.5 46.0 1.8 54.0 2.0 55.0 1.2 56.0 55.9 57.0 4.5 58.0 4.3 59.0 1.3 71.0 1.0 72.0 1.6 85.0 17.2 86.0 1.3 99.0 15.0 100.0 100.0 101.0 7.1
400 MHz in CDCl3
-
1H NMR 399.65 MHz C5 H12 N2 0.05 ml : 0.5 ml CDCl3 acetone dimethylhydrazone
Assign. Shift(ppm)
A 2.427 B *1 1.972 C *1 1.931
Hz ppm Int.1036.13 2.593 29 970.21 2.428 1000 788.09 1.972 890 784.79 1.964 52 774.66 1.939 52 771.85 1.932 824 768.19 1.923 64
in CDCl3
liquid film
