135-01-3

1,2-DIETHYLBENZENE(135-01-3) Raman

Product Name1,2-DIETHYLBENZENE

CAS 135-01-3

Molecular FormulaC10H14

Molecular Weight134.22

InChIInChI=1S/C10H14/c1-3-9-7-5-6-8-10(9)4-2/h5-8H,3-4H2,1-2H3

InChIKey KVNYFPKFSJIPBJ-UHFFFAOYSA-N

SmilesC1(CC)=CC=CC=C1CC

Request For Quotation

1,2-DIETHYLBENZENE(135-01-3) Raman

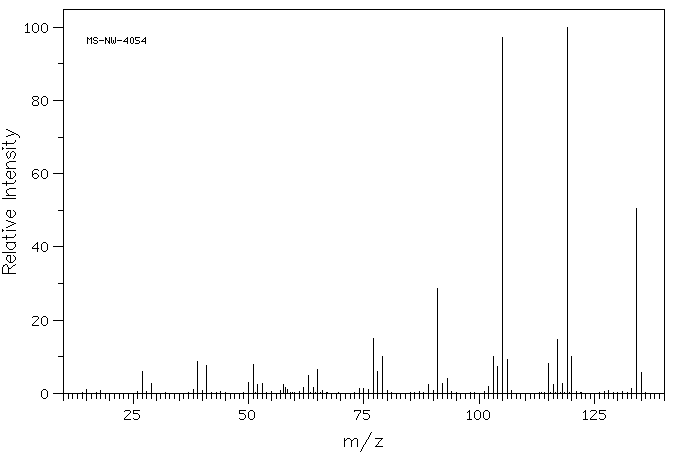

Mass

MS-NW-4054
o-diethylbenzene
C10H14              (Mass of molecular ion:    134)

   Source Temperature: 280 °C
   Sample Temperature: 180 °C
   Reservoir, 75 eV

      15.0       1.0
      27.0       6.0
      29.0       2.7
      38.0       1.0
      39.0       8.7
      41.0       7.6
      50.0       3.1
      51.0       7.8
      52.0       2.3
      53.0       2.7
      57.5       2.3
      58.0       1.6
      58.5       1.1
      62.0       1.5
      63.0       4.9
      64.0       1.5
      65.0       6.6
      74.0       1.4
      75.0       1.3
      76.0       1.1
      77.0      14.9
      78.0       5.9
      79.0      10.2
      89.0       2.5
      91.0      28.7
      92.0       2.7
      93.0       4.0
     102.0       1.9
     103.0      10.1
     104.0       7.4
     105.0      97.3
     106.0       9.3
     115.0       8.2
     116.0       2.5
     117.0      14.8
     118.0       2.7
     119.0     100.0
     120.0      10.0
     133.0       1.3
     134.0      50.6
     135.0       5.6

90 MHz in CDCl3

1,2-DIETHYLBENZENE(135-01-3) Raman

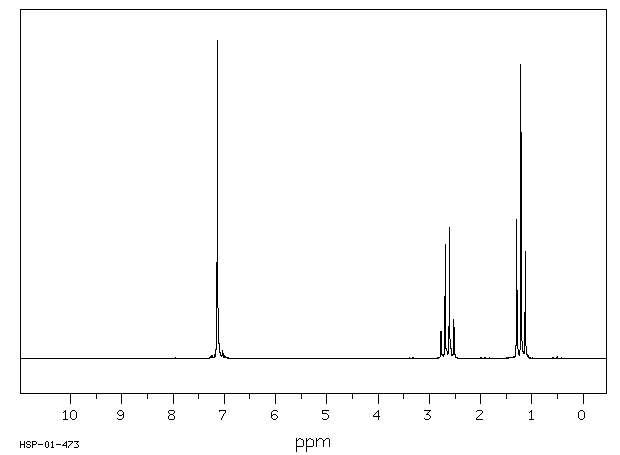

¹H NMR	89.56 MHz
C₁₀ H₁₄	0.04 ml : 0.5 ml CDCl₃
o-diethylbenzene

    Assign.     Shift(ppm)

      A             7.14
      B             2.64
      C             1.217

     Hz     ppm     Int.

    641.31   7.161     32
    639.13   7.137   1000
    636.88   7.112     79
    629.81   7.033     24
    249.00   2.781     81
    248.44   2.775     86
    241.00   2.691    358
    238.63   2.665     32
    233.44   2.607    412
    231.25   2.583     33
    226.38   2.528    119
    225.88   2.523    122
    116.13   1.297    437
    110.06   1.229     71
    108.81   1.215    925
    106.56   1.190     54
    101.06   1.129    336

in CDCl3
