1738-86-9

Z-GLY-ONP(1738-86-9) Raman

Product NameZ-GLY-ONP

CAS 1738-86-9

Molecular FormulaC16H14N2O6

Molecular Weight330.29

InChIInChI=1S/C16H14N2O6/c19-15(24-14-8-6-13(7-9-14)18(21)22)10-17-16(20)23-11-12-4-2-1-3-5-12/h1-9H,10-11H2,(H,17,20)

InChIKey LHFNPUGRSYOPLF-UHFFFAOYSA-N

SmilesC(OC1=CC=C([N+]([O-])=O)C=C1)(=O)CNC(OCC1=CC=CC=C1)=O

Request For Quotation

Z-GLY-ONP(1738-86-9) Raman

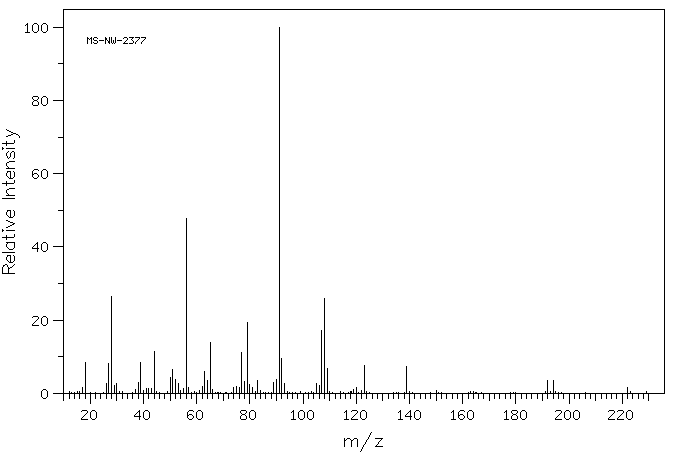

Mass

MS-NW-2377
N-(benzyloxycarbonyl)glycine p-nitrophenyl ester
C16H14N2O6          (Mass of molecular ion:    330)

   Source Temperature: 240 °C
   Sample Temperature: 220 °C
   Direct, 75 eV

      17.0       1.7
      18.0       8.4
      26.0       2.7
      27.0       8.2
      28.0      26.4
      29.0       2.1
      30.0       2.8
      37.0       1.0
      38.0       2.9
      39.0       8.4
      41.0       1.2
      42.0       1.3
      43.0       1.4
      44.0      11.3
      50.0       4.2
      51.0       6.5
      52.0       3.8
      53.0       2.6
      55.0       1.3
      56.0      47.8
      57.0       1.7
      62.0       1.9
      63.0       6.0
      64.0       3.4
      65.0      14.0
      66.0       1.0
      74.0       1.5
      75.0       1.8
      76.0       1.7
      77.0      11.2
      78.0       3.2
      79.0      19.3
      80.0       2.5
      81.0       1.7
      83.0       3.5
      89.0       3.0
      90.0       3.9
      91.0     100.0
      92.0       9.4
      93.0       2.7
     105.0       2.6
     106.0       2.1
     107.0      17.2
     108.0      26.0
     109.0       6.9
     119.0       1.0
     120.0       1.5
     123.0       7.5
     139.0       7.4
     192.0       3.5
     194.0       3.5
     222.0       1.6
