92-70-6

2-羟基-3-萘甲酸(92-70-6)红外图谱(IR2)

产品名称:2-羟基-3-萘甲酸

CAS:92-70-6

分子式:C11H8O3

分子量: 188.18

InChI:InChI=1S/C11H8O3/c12-10-6-8-4-2-1-3-7(8)5-9(10)11(13)14/h1-6,12H,(H,13,14)

InChIKey: ALKYHXVLJMQRLQ-UHFFFAOYSA-N

Smiles:C1=C2C(C=CC=C2)=CC(O)=C1C(O)=O

  • 图谱
    Mass

    MS-NW-0326
    3-hydroxy-2-naphthoic acid
    C11H8O3             (Mass of molecular ion:    188)


       Source Temperature: 170 °C
       Sample Temperature: 120 °C
       Direct, 75 eV


          18.0       1.0
          38.0       1.0
          39.0       3.4
          50.0       2.1
          51.0       2.7
          53.0       1.3
          56.5       1.7
          57.0       8.2
          57.5       2.3
          61.0       1.3
          62.0       4.4
          63.0       8.3
          64.0       1.9
          65.0       1.8
          71.0      21.3
          71.5       2.7
          74.0       2.4
          75.0       2.3
          77.0       2.5
          85.0       7.9
          85.5       1.7
          86.0       2.4
          87.0       3.8
          88.0       6.2
          89.0       3.3
          94.0       1.8
         103.0       1.9
         107.0       2.3
         113.0       9.6
         114.0      40.6
         115.0      12.5
         116.0       1.2
         142.0      61.3
         143.0       7.3
         144.0       2.8
         170.0     100.0
         171.0      13.4
         172.0       1.3
         188.0      50.0
         189.0       6.1


90 MHz in DMSO-d6

  • 图谱

    1H NMR 89.56 MHz
    C11 H8 O3 0.040 g : 0.5 ml DMSO-d6
    3-hydroxy-2-naphthoic acid
    ChemicalStructure
        Assign.     Shift(ppm)
    A 11.6 B 8.589 C *1 7.984 D *1 7.780 E *2 7.55 F *2 7.36 G 7.355

         Hz     ppm     Int.


       1039.23  11.604     68
        769.30   8.590    782
        719.91   8.039    210
        719.23   8.031    201
        711.96   7.950    277
        702.05   7.839    176
        693.85   7.748    352
        684.45   7.643    156
        683.00   7.627    179
        677.78   7.568    308
        676.42   7.553    262
        674.88   7.536     97
        669.84   7.480    198
        667.27   7.451    284
        665.48   7.431    252
        658.81   7.357   1000
        652.58   7.287    108
        651.12   7.271     97


in DMSO-d6

  • 图谱

KBr disc

  • 图谱

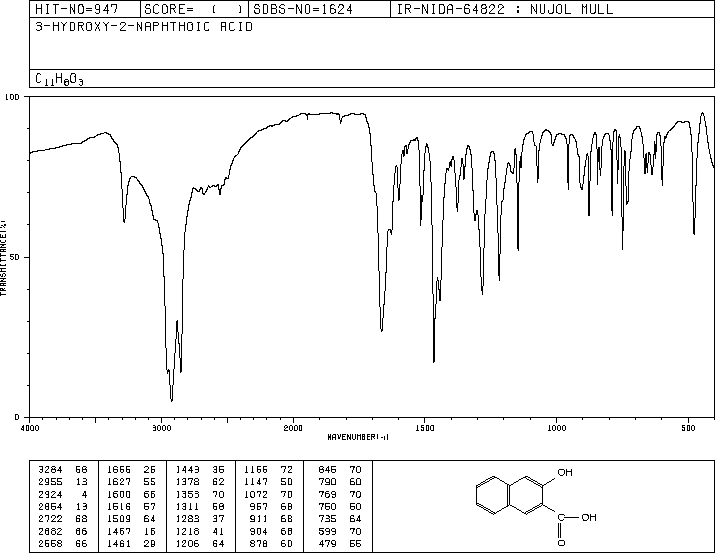

nujol mull

  • 图谱
