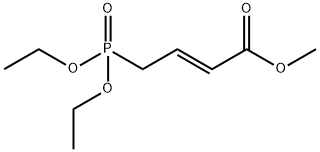

(E)-Methyl 4-(diethoxyphosphoryl)but-2-enoate synthesis
- Product Name:(E)-Methyl 4-(diethoxyphosphoryl)but-2-enoate
- CAS Number:67629-62-3
- Molecular formula:C9H17O5P
- Molecular Weight:236.2
Yield:67629-62-3 92%
Reaction Conditions:
at 120; for 3 h;
Steps:
1.1.1 Step 1: Synthesis of (E)-methyl 4-(diethoxyphosphoryl)but-2-enoate
Methyl-4-bromocrotonate (85%, 1.40 mL, 12.03 mmol) and triethyl phosphite (2 g, 12.03 mmol) were mixed, and then heated at 120° C. for 3 hours. After the reaction was completed, ethyl bromide as a by-product was removed while heated at 38° C., thereby obtaining (E)-methyl 4-(diethoxyphosphoryl)but-2-enoate (2.6 g, 92%). 1H NMR (400 MHz, CDCl3) δ 6.88 (ddd, 1H, J=15.4, 15.4, 7.8 Hz), 5.96 (dd, 1H, J=15.6, 4.9 Hz), 4.1 (m, 4H), 3.73 (s, 3H), 2.74 (dd, 2H, 22.9, 7.8 Hz), 1.31 (t, 6H, J=7.1 Hz).
References:
US2020/157048,2020,A1 Location in patent:Paragraph 0467-0469
