1,4-Dibromobutane(110-52-1) Raman

Product Name1,4-Dibromobutane

CAS110-52-1

Molecular FormulaC4H8Br2

Molecular Weight215.91

InChIInChI=1S/C4H8Br2/c5-3-1-2-4-6/h1-4H2

InChIKey ULTHEAFYOOPTTB-UHFFFAOYSA-N

SmilesC(Br)CCCBr


  • Mass

    MS-NW-0921
    1,4-dibromobutane
    C4H8Br2             (Mass of molecular ion:    214)


       Source Temperature: 290 °C
       Sample Temperature: 150 °C
       Reservoir, 75 eV


          26.0       6.9
          27.0      39.5
          28.0       9.5
          29.0      27.1
          38.0       2.0
          39.0      16.9
          40.0       1.3
          41.0      15.2
          42.0       1.0
          50.0       1.8
          51.0       2.0
          53.0       7.0
          54.0       2.4
          55.0     100.0
          56.0       5.1
          79.0       1.1
          80.0       1.4
          81.0       1.2
          82.0       1.2
          93.0       2.1
          95.0       2.1
         106.0       2.1
         107.0       6.9
         108.0       2.2
         109.0       6.2
         134.0       3.8
         135.0      41.9
         136.0       5.7
         137.0      39.9
         138.0       1.7

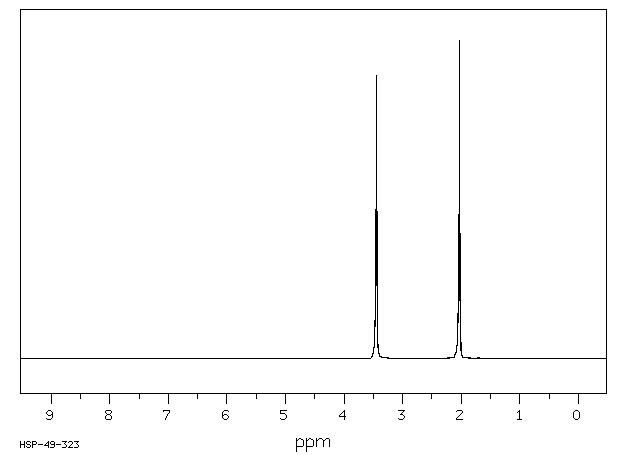

400 MHz in CDCl3


  • 1H NMR 399.65 MHz
    C4 H8 Br2 0.05 ml : 0.5 ml CDCl3
    1,4-dibromobutane
    ChemicalStructure
        Assign.     Shift(ppm)
    A 3.449 B 2.033

         Hz     ppm     Int.


       1384.89   3.466    470
       1383.67   3.463    352
       1382.45   3.460    323
       1381.10   3.456    425
       1379.76   3.453    455
       1378.66   3.450    890
       1377.44   3.447    469
       1376.22   3.444    420
       1374.76   3.440    312
       1373.54   3.437    327
       1372.31   3.434    461
        821.53   2.056    142
        818.60   2.049    452
        817.38   2.046    304
        815.80   2.042    452
        815.19   2.040    431
        813.60   2.036    380
        812.38   2.033   1000
        811.16   2.030    353
        809.45   2.026    394
        808.84   2.024    424
        807.25   2.020    255
        806.03   2.017    392


in CDCl3



CCl4 solution



liquid film



4880 A,200 M,liquid
