13728-34-2

2,3-Naphthalenedicarboxylic acid dimethyl ester(13728-34-2) MS

Product Name2,3-Naphthalenedicarboxylic acid dimethyl ester

CAS 13728-34-2

Molecular FormulaC14H12O4

Molecular Weight244.24

InChIInChI=1S/C14H12O4/c1-17-13(15)11-7-9-5-3-4-6-10(9)8-12(11)14(16)18-2/h3-8H,1-2H3

InChIKey MPDGBCOIHNLQMR-UHFFFAOYSA-N

SmilesC1=C2C(C=CC=C2)=CC(C(OC)=O)=C1C(OC)=O

Request For Quotation

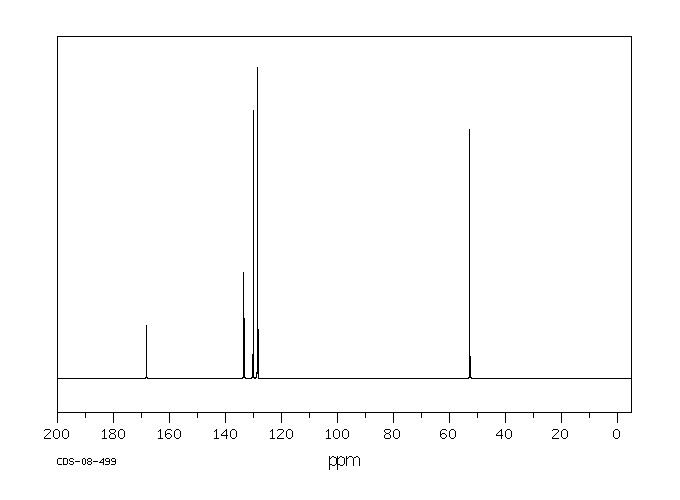

¹³CNMR

2,3-Naphthalenedicarboxylic acid dimethyl ester(13728-34-2) MS
Mass

MS-KW-0503
dimethyl 2,3-naphthalenedicarboxylate
C14H12O4            (Mass of molecular ion:    244)

   Source Temperature: 140 °C
   Sample Temperature: 100 °C
   Direct, 75 eV

      50.0       1.0
      63.0       4.4
      74.0       1.2
      75.0       1.2
      76.0       1.4
      77.0       2.9
      91.0       1.3
     106.5       2.4
     113.0       1.0
     114.0       2.9
     122.0       1.1
     126.0       6.2
     127.0      17.2
     128.0       2.6
     129.0       1.6
     142.0       2.5
     154.0       3.2
     155.0       2.4
     170.0       2.9
     183.0       3.1
     185.0       5.3
     186.0       1.1
     213.0     100.0
     214.0      14.4
     215.0       1.7
     244.0      53.2
     245.0       8.3
     246.0       1.0

in CDCl3
