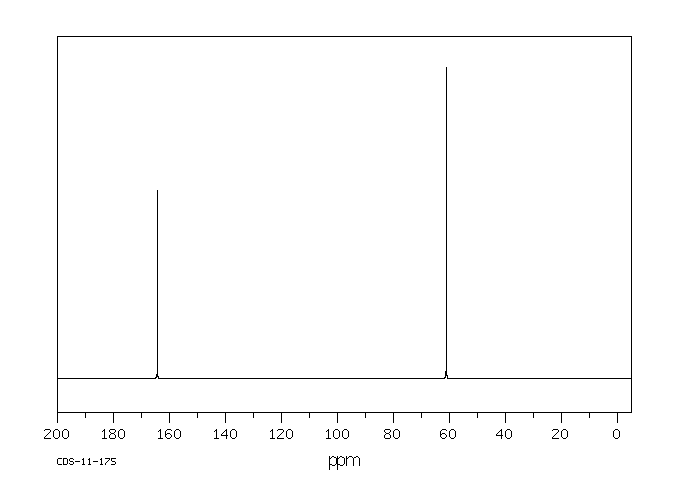

Malonyl chloride(1663-67-8) ¹³C NMR

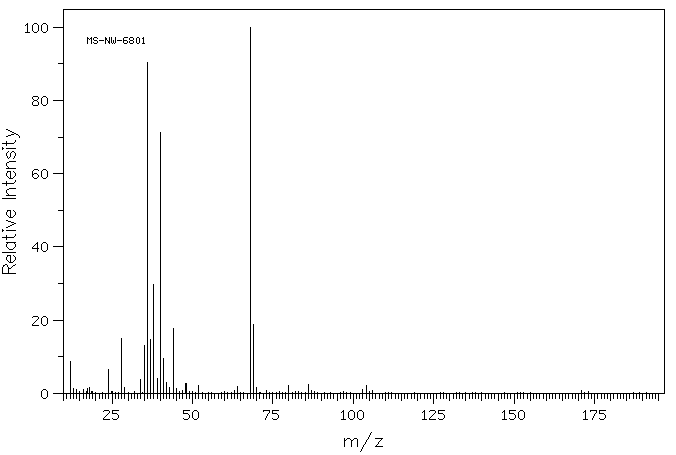

Mass

MS-NW-6801
malonyl dichloride
C3H2Cl2O2           (Mass of molecular ion:    140)

   Source Temperature: 260 °C
   Sample Temperature: 190 °C
   Reservoir, 75 eV

      12.0       8.8
      13.0       1.2
      14.0       1.1
      16.0       1.0
      17.5       1.2
      18.0       1.7
      24.0       6.4
      28.0      14.9
      29.0       1.5
      34.0       3.7
      35.0      13.2
      36.0      90.4
      37.0      14.6
      38.0      29.7
      39.0       4.0
      40.0      71.4
      41.0       9.4
      42.0       3.1
      43.0       1.7
      44.0      17.7
      45.0       1.2
      48.0       2.8
      52.0       2.2
      64.0       2.0
      68.0     100.0
      69.0      18.7
      70.0       1.5
      80.0       2.1
      86.0       2.3
     103.0       1.0
     104.0       2.1
