Back ChemicalBook Home>CAS DataBase List>2103-57-3More Spectrum> 2,3,4-Trimethoxybenzaldehyde(2103-57-3) Raman

2103-57-3

2,3,4-Trimethoxybenzaldehyde(2103-57-3) Raman

Molecular FormulaC10H12O4

Molecular Weight196.2

InChIInChI=1S/C10H12O4/c1-12-8-5-4-7(6-11)9(13-2)10(8)14-3/h4-6H,1-3H3

InChIKey UCTUXUGXIFRVGX-UHFFFAOYSA-N

SmilesC(=O)C1=CC=C(OC)C(OC)=C1OC

  • 2,3,4-Trimethoxybenzaldehyde(2103-57-3) Raman
    Mass

    MS-NW-8748
    2,3,4-trimethoxybenzaldehyde
    C10H12O4            (Mass of molecular ion:    196)


       Source Temperature: 270 °C
       Sample Temperature: 140 °C
       Reservoir, 75 eV


          15.0       3.9
          18.0       4.6
          27.0       1.6
          28.0       5.3
          29.0       2.5
          37.0       1.2
          38.0       4.6
          39.0      14.4
          41.0       3.3
          43.0       2.7
          45.0       1.6
          50.0       5.0
          51.0       8.5
          52.0       3.1
          53.0       8.0
          54.0       1.8
          55.0       2.8
          59.0       1.5
          62.0       1.8
          63.0       3.2
          64.0       1.9
          65.0      13.6
          66.0       5.4
          67.0       6.5
          69.0       3.1
          75.0       1.8
          76.0       4.4
          77.0      10.7
          78.0       5.8
          79.0       8.1
          80.0       2.9
          81.0       4.0
          82.0       7.0
          90.0       2.3
          91.0       2.8
          92.0       4.0
          93.0      10.3
          94.0       4.9
          95.0      15.5
          96.0       1.7
          97.0       3.4
         104.0       3.4
         105.0       5.5
         106.0       6.3
         107.0      10.1
         108.0       5.3
         109.0       5.5
         110.0      10.4
         118.0       2.0
         119.0       4.0
         120.0      12.7
         121.0       5.9
         122.0       4.1
         123.0      14.5
         124.0       2.2
         125.0       6.0
         132.0       1.2
         133.0       2.2
         134.0       5.5
         135.0      18.0
         136.0       7.9
         137.0      10.0
         138.0       7.0
         139.0       5.3
         147.0       1.0
         148.0       9.6
         149.0       5.7
         150.0      20.9
         151.0      13.8
         152.0       8.3
         153.0       9.4
         154.0       1.6
         162.0       1.2
         163.0      33.9
         164.0       4.0
         165.0       6.9
         166.0       6.6
         167.0       8.4
         168.0       1.9
         177.0       2.6
         178.0      10.6
         179.0      20.3
         180.0       4.8
         181.0      40.1
         182.0       4.0
         195.0      13.9
         196.0     100.0
         197.0      11.5
         198.0       1.4


90 MHz in CDCl3

  • 2,3,4-Trimethoxybenzaldehyde(2103-57-3) Raman

    1H NMR 89.56 MHz
    C10 H12 O4 0.058 g : 0.5 ml CDCl3
    2,3,4-trimethoxybenzaldehyde

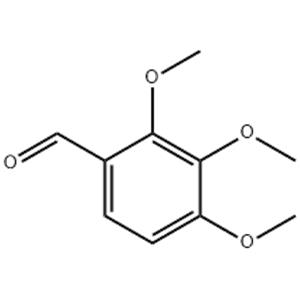

    ChemicalStructure
        Assign.     Shift(ppm)
    A 10.244 B 7.598 C 6.767 D 4.034 E 3.941 F 3.890 J(B,C)=8.8HZ J(A,C)=0.6HZ

         Hz     ppm     Int.


        917.80  10.248    209
        917.21  10.242    197
        685.33   7.653    136
        676.54   7.555    169
        610.11   6.813    109
        601.32   6.715     88
        361.38   4.036   1000
        353.03   3.942    865
        348.49   3.892    993


in CDCl3

  • 2,3,4-Trimethoxybenzaldehyde(2103-57-3) Raman

KBr disc

  • 2,3,4-Trimethoxybenzaldehyde(2103-57-3) Raman

nujol mull

  • 2,3,4-Trimethoxybenzaldehyde(2103-57-3) Raman

4880 A,200 M,powder

  • 2,3,4-Trimethoxybenzaldehyde(2103-57-3) Raman
